Engine:VANGUARD, 993 cc (35 hp / 26 kW).
Engine RPM: 2000-3600
Weight: 1014 lbs / 460 kg
Grinding Pressure: 392-690 lbs / 178-313 kg
Grinding Pressure with Extra Weight: 794 lbs / 390 kg
Heads: 3 x 13.2 inch / 335-mm (left rotation)
Propane Tank: 20 lbs. Use only vapor tanks. Do not fill over 80%.
Camlock E300

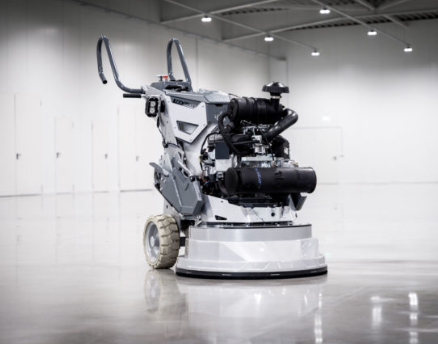

L31GS7 is a new addition to the LAVINA S7 lineup – a 31″ propane floor machine, designed for heavy duty grinding. It is equipped with a powerful Vanguard 35 hp engine, updated planetary drive and option to add more weight. With plenty of torque to handle any job, this machine is a beast.
S7 FEATURES
NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment
