Engine: KOHLER PCV740, 747 cc (24 hp / 3600 min).
Also offered with Kawasaki FX600V (19 hp): L30GS7 – $22,900.00 (see specs below)
Engine RPM: 2000-3600; Tool Holder RPM: 425-765
Weight: 926 lbs / 420 kg
Grinding Pressure:388-573 lbs / 176-260 kg
Integrated weights with 4 positions

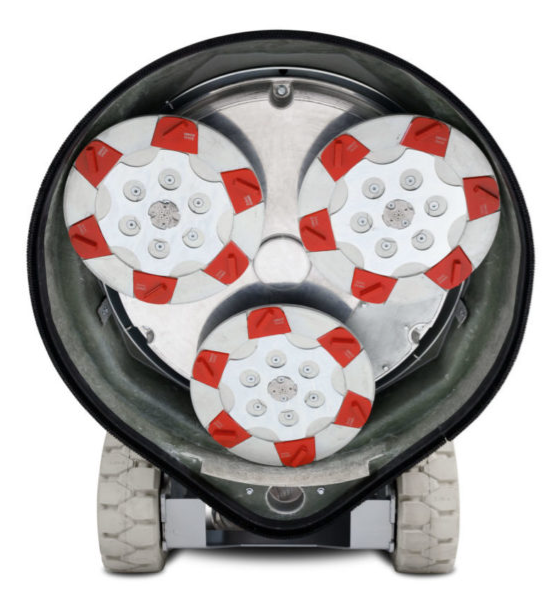

Heads: 3 x 13.2 inch / 335-mm (left rotation)
Propane Tank: 20 lbs. Use only vapor tanks. Do not fill over 80%.
Camlock E300
NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment
