S7 FEATURES

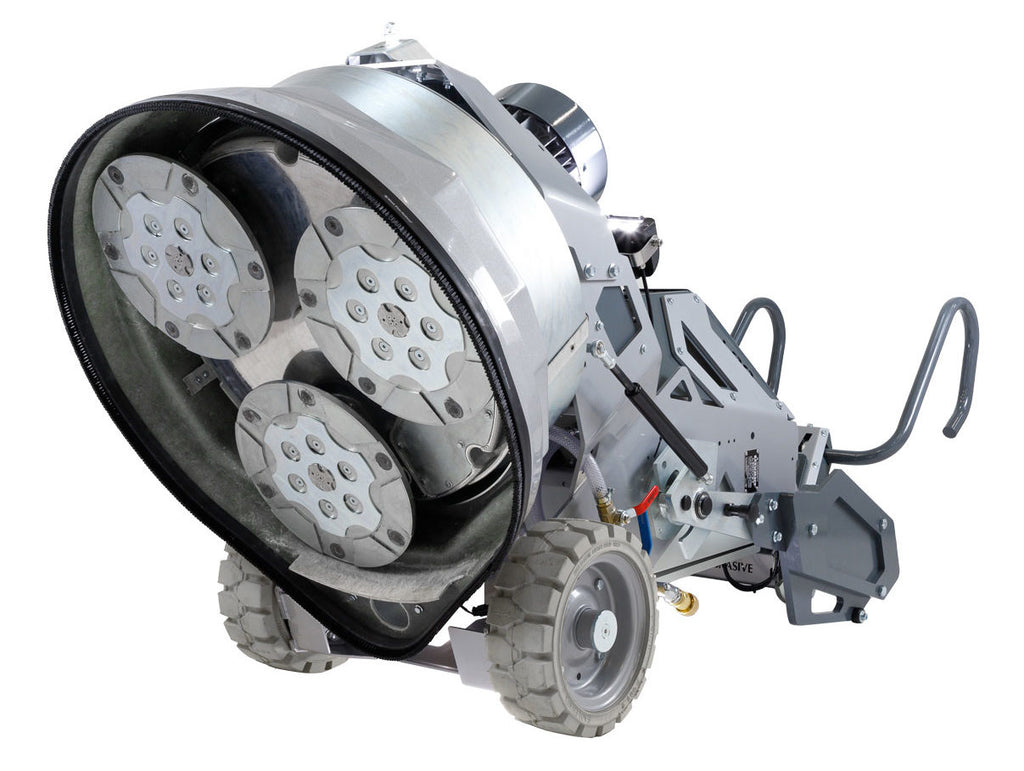

NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes

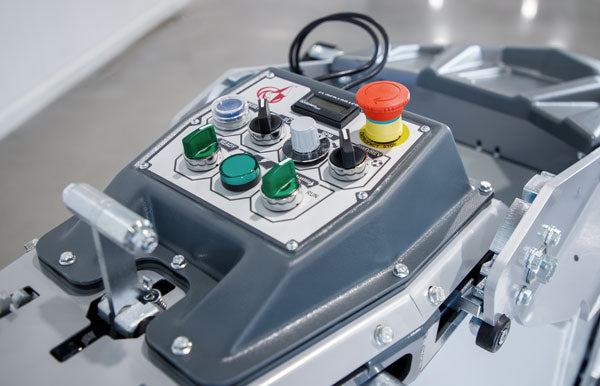

- New ergonomic handle design – faster adjustability and more positions
- Rubber bushing used at head attachment points – less vibrations for user
- Water tank cap
- Internal storage compartment

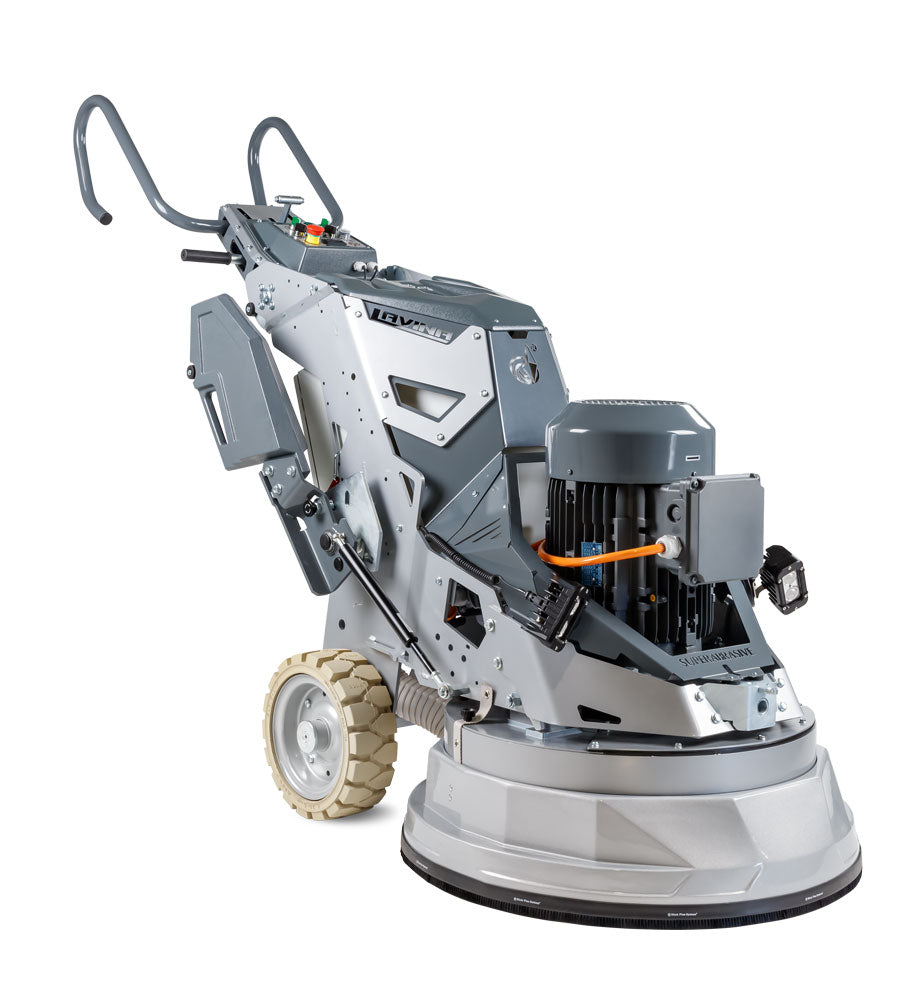

With a wide 30″ work path, powerful motor and user-friendly features, L30S7 grinding and polishing machine gets the job done with ease. Ideal for job sites where propane is not allowed. Offered in three voltage options.
Motor Power: 15 hp / 11 kW
Voltage: 3 phase, 200-240V, 45 Amp max;
Also in HV: 3 phase, 400-480V, 30 Amp – L30HVS7
European Model: 3 phase, 380-400V, 30 Amp – L30ES7
Weight: 998 lbs / 453 kg
Grinding Pressure: 460-619 lbs / 209-289 kg
Integrated weights with 4 positions
Grinding Heads: 3 x 13.2 inch / 335-mm (Left Rotation)
Tool Holder RPM: 400-765
Camlock E300
