L20S7 floor grinder is a great “starter” machine, perfect for smaller residential and commercial jobs, including prep for epoxy, glue and coating removal, grinding and polishing. With a compact design and 20″ footprint, plus plenty of torque, this machine delivers superior grinding and polishing experience.
Horsepower: 7.5 HP / 5.5 KW
Voltage: 1 or 3 phase x 200-240V, 30 Amp max
European models: L20ES7 – 3 ph, 380-400V, 15A; also L20OES7 – 1 ph, 200-240V, 15A
Weight: 518 lbs / 235 kg
Grinding pressure: 211-287 lbs / 96-130 kg
Integrated weights
Heads: 3 x 9-inch / 225-mm
Rotation: Counterclockwise
Tool Holder RPM: 400-1100 rpmhttps://www.youtube.com/watch?v=cHqs8n_IJNU&t=5s

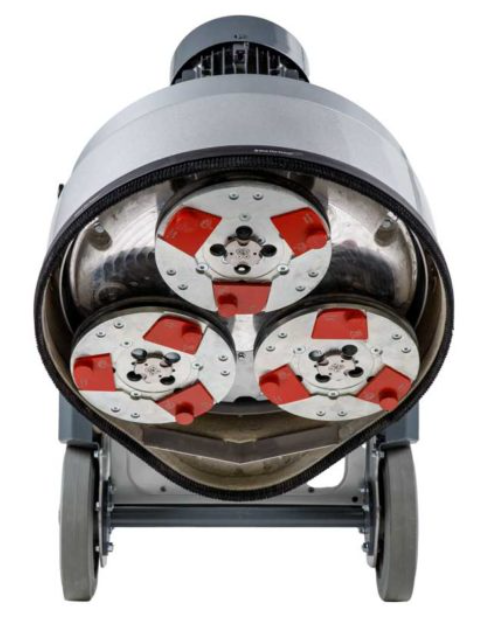

NEW SEALED & DUST-PROOF GRINDING HEAD
Longer service life and less maintenance.
- Completely redesigned chain-driven planetary drive
- New stronger timing belt
- Upgraded shafts, seals and bearings
- New lighter timing pulleys for better power transmission
- New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance
NEW FRAME DESIGN
Better control, easier tool changes, and less vibrations.
- New weights for faster position change
- Redesigned frame allowing easier tool changes
- Rubber bushing used at head attachment points for less vibrations for user
