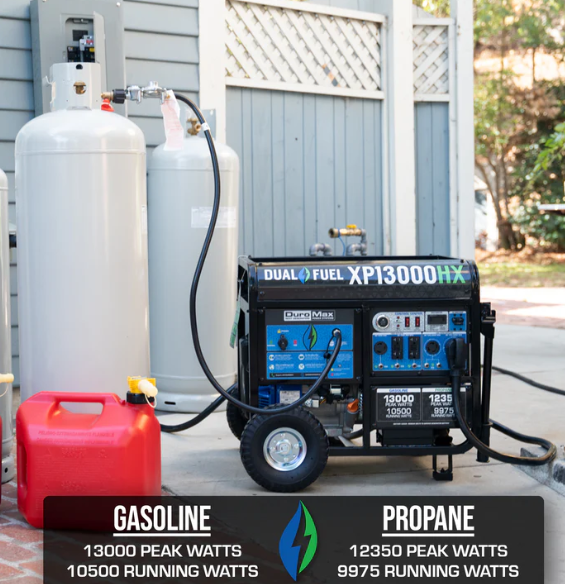

The XP13000HX is the crown jewel of the HX Series with 13,000 watts of POWER. This unit provides the power normally found in stationary home standby generators but in a more affordable, portable package! With a 500cc OHV DuroMax Engine, this workhorse is PERFECT for HOME BACK UP and can power most household essentials such as lights, appliances, and even central A/C systems during any power outage, storm, or emergency event.
| Gasoline |
| Peak Wattage |
13,000 |
| Running Wattage |
10,500 |
| Running Amperage at 120V |
87.5 |
| Running Amperage at 240V |
43.75 |
| Runtime at 25% Load |
17 |
| Runtime at 50% Load |
8.5 |
| Propane |
| Peak Wattage |
12,350 |
| Running Wattage |
9,975 |
| Running Amperage at 120V |
83.13 |
| Running Amperage at 240V |
41.56 |
| Runtime at 25% Load |
13 |
| Runtime at 50% Load |
6.5 |
| Engine & Emission Specifications |
| Engine Manufacturer |
DuroMax Power Equipment |
| Engine Type |
4-Stroke |
| Valve Type |
OHV |
| Engine Cooling Type |
Forced Air |
| Engine Size |
500cc |
| Engine Speed |
3600 RPM |
| Starting Type |
Push Button |
| Electric Start |
Yes |
| Recoil Start |
Yes |
| Idle Control |
No Load Low Idle |
| Fuel Delivery System |
Carburetor |
| Fuel Types |
Gasoline and Propane |
| Oil Cooling Type |
Splash |
| Recommended Oil |
10W-30 |
| Recommended Oil Types |
Blended, Conventional, or Synthetic |
| Oil Capacity |
40.5 fluid oz |
| Suggested Propane Tank Size |
40 lbs. minimum |
| Automatic Low Oil Shutdown |
Yes |
| Cast Iron Sleeve |
Yes |
| Bearing Type |
Stainless Steel Ball Bearing |
| CO Sensor Shutdown |
Yes |
| EPA Certified |
Yes |
| CARB Certified |
Yes |
| 50 State Emissions |
Yes |
| Panel Specifications |
| GFCI Outlets |
Yes |
| Battery Switch |
Yes |
| Volt Meter |
Digital |
| Hour Meter |
Yes |
| 5-20R |
4 |
| L5-30R |
1 |
| L14-30R |
1 |
| 14-50R |
1 |
| Generator Specifications |
| Manufacturer |
DuroMax Power Equipment |
| Part # |
XP13000HX |
| Voltage |
120/240 Volts |
| Frequency |
60 Hertz |
| GFCI Outlets |
Yes |
| Propane Hose & Regulator |
Included |
| Winding Material |
100% Copper Windings |
| Automatic Voltage Regulator |
Yes |
| Battery Type |
12V SLA |
| Battery Included |
Yes |
| RV Ready |
Yes |
| Home Backup Ready |
Yes |
| Fuel Tank Capacity Gasoline |
8.3 Gallons |
| Fuel Gauge |
Yes |
| All Metal Construction |
Yes |
| Product Dimensions |
30"-Long x 29"-Wide x 26"-High |
| Product Dry Weight |
240-lbs |
| Product Weight |
246-lbs |
| Volume (db) |
74 dB |
| UPC |
811640016234 |
| Warranty |
5 Year |
| Wheel & Handle Kit |
Included |
| Wheel Type |
Metal Hub |
| Wheel Diameter |
10-Inches |
| What's in the Box? |
XP13000HX Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, Propane Regulator, and Owner's Manual |
